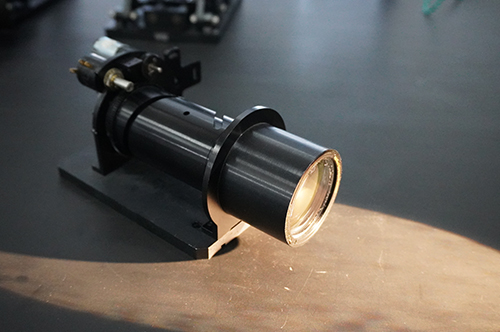

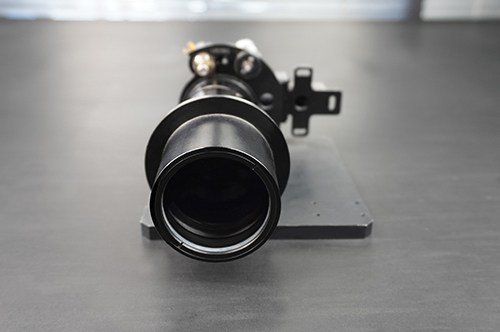

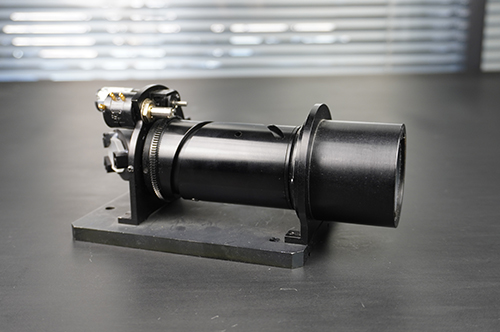

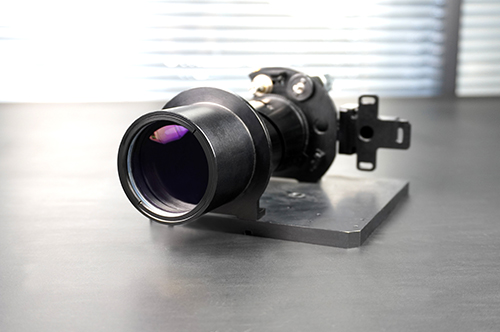

F310 visible light lens

F310 visible light lens

SX-Optics Type F310 Visible Light Lens offers a continuously variable focal length from 14–310 mm with electric focusing and zoom. Designed for stable imaging, it features <2% distortion, <0.3 mrad axis wobble, and operates reliably from –40℃ to +55℃.

0.00
0.00


SX-Optics Type F310 Visible Light Lens offers a continuously variable focal length from 14–310 mm with electric focusing and zoom. Designed for stable imaging, it features <2% distortion, <0.3 mrad axis wobble, and operates reliably from –40℃ to +55℃.

Type F310 Visible Light Lens

SX-Optics F310 Visible Light Lens provides a 14–310 mm continuously variable focal length with electric focus and zoom control. Featuring <2% image distortion, <0.3 mrad axis wobble, and real-time focal length output, it ensures reliable performance across demanding environments from –40℃ to +55℃.

Technical Indicators

ParameterSpecification
Focal Length14–310 mm (continuously variable)
Target Surface Size1/3"
Relative Aperture1:4.5 ~ 1:6.3
Focal Length OutputReal-time function
Output Accuracy<2% (short focus), <5% (long focus)
Image Distortion<2%
Axis Wobble<0.3 mrad
Controllable FunctionsElectric focus, electric continuous zoom
Operating Temperature–40℃ to +55℃

Key Features

  • Wide focal length range: 14–310 mm

  • Continuously variable zoom with electric control

  • Real-time focal length output

  • High accuracy: <2% (short) / <5% (long)

  • Low distortion: <2%

  • Stable imaging: axis wobble <0.3 mrad

  • Wide operating temperature: –40℃ to +55℃

  • Supports demanding outdoor and industrial use

Applications

  • Visible light imaging systems

  • Surveillance and security cameras

  • Machine vision and industrial inspection

  • Remote sensing and monitoring

  • Scientific and defense optics

  • Harsh environment imaging solutions

Why Choose SX-Optics?

SX-Optics specializes in advanced optical solutions for industrial and research applications. Our F310 visible light lens combines wide zoom capability, low distortion, and robust performance across extreme conditions.

Contact SX-Optics today for specifications, customization, or technical support.
